Electronics Screen Printing Mesh
Precision Engineering for Advanced Electronics Manufacturing
As electronic manufacturing advances toward higher integration and smaller dimensions, precision screen printing has become essential for modern electronics production.
WeaveTec electronics screen printing mesh is designed for high-demand applications including PCB production, solar cell printing and thick film circuits, delivering exceptional accuracy, stability and repeatable performance.
Manufactured from premium stainless steel wire, WeaveTec precision screen printing mesh provides excellent resistance to inks, pastes and production stresses. Advanced weaving technology ensures consistent mesh thickness, accurate openings, tight tolerances and reliable print layer control for superior registration accuracy and stable printing results.
WeaveTec offers customized solutions to help manufacturers optimize processes, improve efficiency and achieve consistent high-quality production.
Reliable Performance for a Wide Range of Applications
SS Standard Screen Printing Mesh
The WeaveTec SS standard mesh series provides a versatile solution for a wide range of screen printing applications. Available in multiple specifications, BC mesh covers mesh counts from 500 to 66 mesh, open areas ranging from 25% to 54%, and fabric thicknesses between 60 μm and 200 μm.
Its broad specification range enables manufacturers to select the most suitable mesh structure according to different ink characteristics, printing requirements and production conditions.
HTS High Tensile Screen Printing Mesh
Enhanced Strength and Stability for Precision Applications
WeaveTec HTS is a high-performance high tensile screen printing mesh developed for demanding precision printing applications requiring superior tension stability and registration accuracy.
Through advanced alloy engineering and optimized remelting processes, HTS stainless steel mesh is manufactured with specially developed wire characteristics, providing excellent tensile strength, controlled elongation and improved mechanical stability.
Compared with standard BC mesh, HTS delivers approximately 30% higher strength, enabling better tension retention, enhanced printing accuracy and improved process repeatability.
The reinforced wire structure supports higher printing speeds, longer service life and minimal tension loss during stencil preparation. Designed to withstand heavy mechanical stress, WeaveTec HTS is available up to 640 mesh for advanced precision printing requirements.
UHS Ultra High Strength Screen Printing Mesh
Designed for Extreme Precision Requirements
WeaveTec UHS ultra high strength screen printing mesh has been developed for highly demanding applications requiring exceptional tension stability and maximum printing accuracy.
Especially suitable for ceramic surface printing applications such as solar wafer manufacturing, UHS provides approximately 2.5 times higher tensile strength than HTS mesh.
This superior strength performance ensures excellent dimensional stability, outstanding release characteristics and exceptional registration accuracy, making UHS an ideal solution for advanced electronic and photovoltaic printing processes.
UHTS Ultra High Tensile Screen Printing Mesh
Maximum Accuracy for Advanced Printing Processes
WeaveTec UHTS ultra high tensile screen printing mesh is designed for applications where the highest level of registration accuracy and long-term stability are required.
Even after thousands of printing cycles, UHTS maintains outstanding dimensional stability and consistent printing performance.
Its exceptional durability and precision make it particularly suitable for solar cell printing, electronic circuit manufacturing and other advanced applications where repeatability and quality control are critical.
Applications
Precision Screen Printing Solutions for Advanced Industries
As electronic devices continue to become smaller and more sophisticated, the demand for highly precise printed circuits and PCBs continues to grow.
WeaveTec metal screen printing mesh provides exceptional registration accuracy and printing stability for advanced electronic manufacturing processes. Designed to optimize ink flow and control ink film thickness, our precision screen printing mesh enables consistent colour transitions, uniform printing quality and reliable production performance.

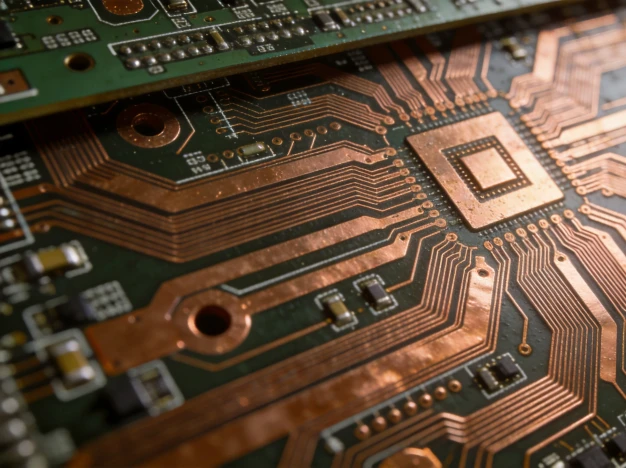

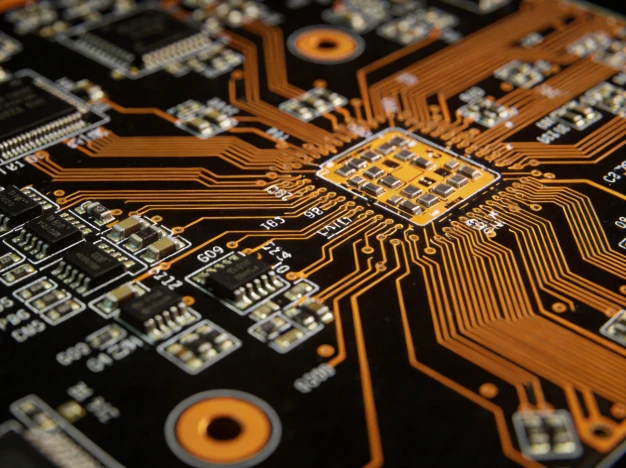

PCB – Printed Circuit Boards (Single-Sided and Double-Sided)
FPC – Flexible Printed Circuits
Thick Film Circuits
LTCC – Low Temperature Co-fired Ceramics
MLCC Components – Ceramic Capacitors
Solder Paste Printing for SMD Applications
Membrane Keypads
Chip Manufacturing
RFID – Radio Frequency Identification Technologies
LCD / PDP / OLED / FED Display Technologies
Electronic Paper & Touch Panels
