In high-performance security screens, true protection is achieved when material quality is paired with structural precision. At WeaveTec, stainless steel mesh performance is engineered through geometry-specifically, through Plain Weave (Square Weave) construction executed with controlled wire diameter and manufacturing accuracy. This geometric discipline forms the foundation for predictable strength, long-term durability, and consistent safety performance in residential security applications.
Plain Weave Structure: Security Begins with Geometry
Plain Weave, also referred to as Square Weave, is the most structurally balanced weaving method for security screens. In this configuration, each warp wire passes alternately over and under each weft wire, forming uniform square openings. The defining characteristic is the perfect 90-degree intersection at every crossing point.

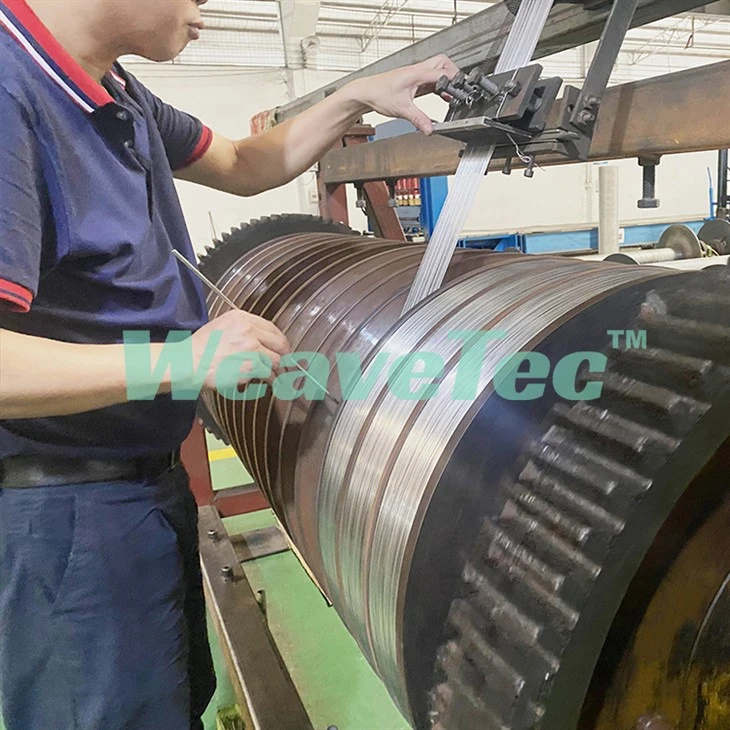

At WeaveTec, this structure is achieved through advanced automated looms that regulate wire tension continuously throughout the weaving process. Every intersection locks into place with equal mechanical force, eliminating weak points caused by uneven stress distribution. Unlike welded mesh, which relies on localized fusion joints, woven intersections distribute loads across the entire surface, allowing the mesh to absorb impact without tearing or permanent deformation.
This geometric balance is essential for resisting cutting, prying, and shear forces commonly applied during forced entry attempts.
Wire Diameter Consistency: The Hidden Factor Behind Mesh Strength
While the weave pattern defines structure, wire diameter consistency defines performance. WeaveTec maintains tight diameter tolerances within the range of 0.6–1.2 mm, depending on application requirements.
If wire thickness varies, thinner wires become stress concentration points under impact, while thicker wires distort mesh openings and reduce airflow. Inconsistent diameter also affects the stability of the square weave, potentially causing irregular apertures that compromise both security and aesthetics.
By controlling wire diameter with sub-millimeter precision, WeaveTec ensures that mechanical forces are distributed evenly across the mesh. This consistency directly contributes to high tensile performance, stable deformation behavior, and resistance to fatigue over long-term use.
Aperture Control: Balancing Visibility, Airflow, and Protection
Plain Weave geometry enables precise aperture control, typically maintaining 40–60% open area depending on mesh configuration. This range represents an optimal balance between security and daily comfort.
From a security perspective, controlled apertures prevent fingers, tools, or cutting implements from gaining leverage. From a lifestyle standpoint, the square geometry preserves airflow efficiency and visual clarity, allowing natural ventilation and outward visibility without creating a sense of enclosure.
Unlike irregular or diamond-shaped meshes, square apertures maintain consistent visual rhythm, improving aesthetics and minimizing visual distortion when viewed from inside the home.
Knife Shear Resistance: Geometry Under Real-World Stress
The effectiveness of geometric precision becomes evident during performance testing. WeaveTec's plain weave mesh consistently passes Knife Shear Tests in accordance with AS5041-2008, a critical benchmark for security screens.
During these tests, cutting forces are applied to the mesh surface to simulate real intrusion attempts. The uniform 90-degree intersections prevent blades from spreading wires apart, while consistent wire diameter prevents localized failure. Rather than tearing, the mesh distributes the applied force across multiple wires, dramatically increasing resistance to penetration.
This behavior is only possible when weave geometry and wire thickness are perfectly aligned.
Long-Term Stability: Geometry That Does Not Degrade Over Time
Structural precision is not just about initial performance-it determines how a product behaves after years of environmental exposure. Because plain weave mesh has no weld points, it avoids common failure modes such as weld cracking, corrosion concentration, or joint fatigue.
The square weave geometry also resists creep and permanent deformation under constant tension. Even after prolonged wind load, pressure, or repeated handling, the mesh retains its shape, aperture uniformity, and frame compatibility.By mastering the geometry of woven stainless steel mesh, WeaveTec delivers security screens that offer reliable protection, clear visibility, stable airflow, and long-term durability.
