Security screen performance is not only influenced by the materials used but also by specific structural factors-namely, the mesh count and aperture size. These elements directly impact the screen's ability to balance airflow, visibility, insect exclusion, and intrusion resistance. Understanding how these features interact helps buyers make informed decisions.

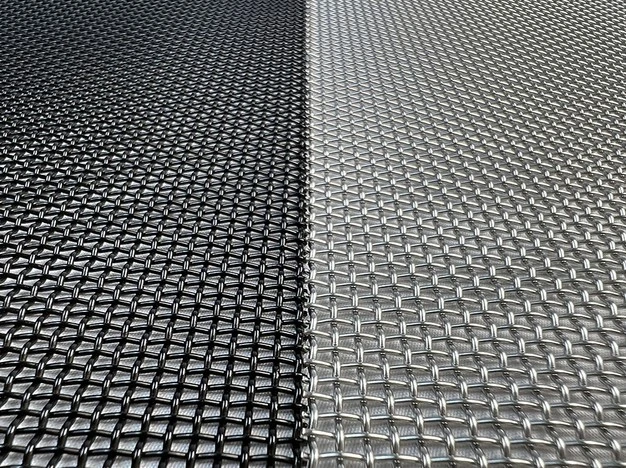

Mesh count refers to the number of wires per inch. For example, a 11x11 mesh consists of 11 wires running in both the vertical and horizontal directions. This configuration results in a finer screen that effectively blocks even small insects. In contrast, a 6x6 mesh allows for greater airflow but may be more penetrable by small pests. A balanced option-such as a 11x11 mesh with a wire diameter of 0.8 mm-is commonly preferred in residential security applications.
Aperture size, defined as the space between individual wires, also plays a key role. A tighter aperture of around 0.8 mm increases protection against insects and physical tampering, while larger apertures improve ventilation. Choosing the right combination of mesh count and aperture depends on climate, building layout, and local pest concerns.
For security window and door manufacturers, it is essential to match the mesh properties with end-user needs. Urban environments with high mosquito activity, for example, demand a tighter weave, whereas homes in breezy, temperate zones may benefit from slightly looser configurations. In all cases, a quality stainless steel mesh ensures longevity, corrosion resistance, and low maintenance.
